All-in-One Temperature Monitoring System TK-FS450

The TK-FS450 All-in-One Temperature Monitoring System provides a complete monitoring solution. It can connect to various temperature data loggers via USB, Ethernet, or Wi-Fi over a local network (additional hardware may be required for Ethernet or Wi-Fi connectivity).

Supports Various Temperature Data Loggers

  • Compatible with temperature data loggers connected via:

    • USB

    • Ethernet (additional hardware required)

    • Wi-Fi over a local network (additional hardware required)

Battery-Powered Temperature Data Loggers

  • Built-in battery with a service life of up to 10 years, providing power for continuous data logging.

  • Each data logger can independently record and store data for up to 2 months without requiring an external power supply or network connection.

Optional Multi-Alarm Notifications

  • Supports optional multiple alarm notification methods.

Remote Configuration

  • Configure data loggers remotely from a PC, smartphone, or tablet.

Multiple Data Backup

  • Supports multiple backup methods to ensure data security and reliability.

Centralized Management

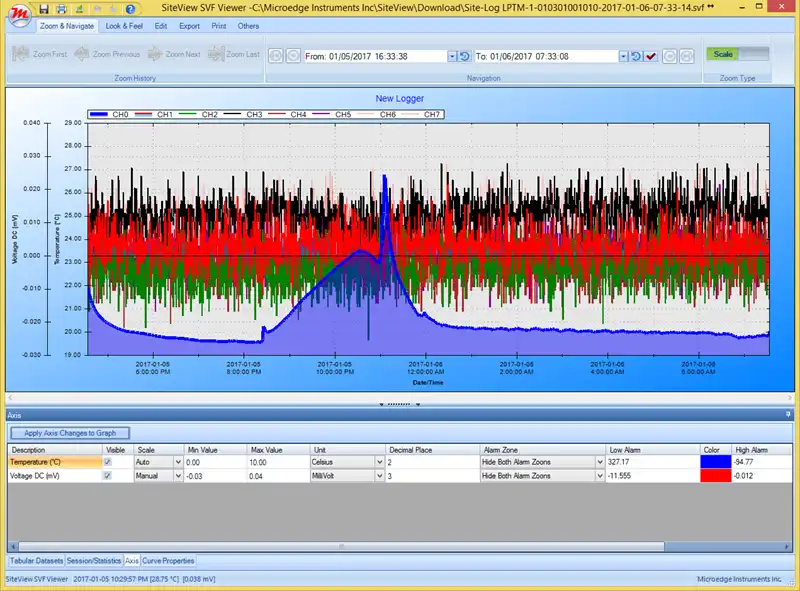

  • The system provides a graphical user interface (GUI) for managing and monitoring multiple temperature data loggers within the system.



The system provides a graphical user interface (GUI) for monitoring and managing the various temperature data loggers connected to the system.

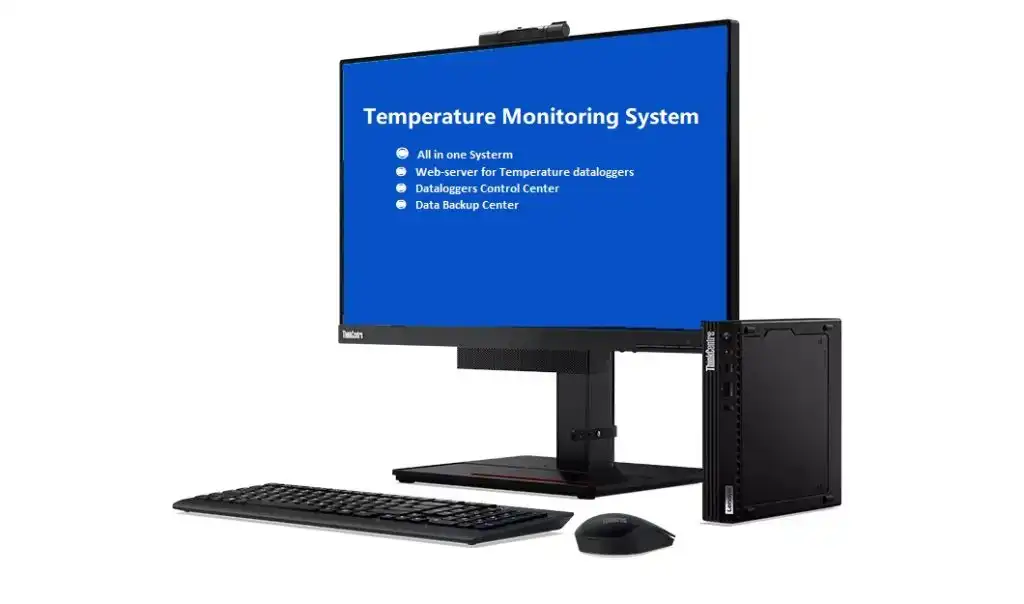

All-in-one temperature monitoring system TK-FS450
All-in-one temperature monitoring system TK-FS450

This system also functions as a web server, allowing users to remotely access the system from a PC, Mac, smartphone, or tablet through the local network.

  • Data Logger Control Center
  • Data Logger Web Server
  • Data Logger Backup
  • Types of Data Loggers:

    • Thermocouple Data Loggers

    • Thermistor Data Loggers

    • Resistance Temperature Detector (RTD) Data Loggers

    • Relative Humidity Data Loggers





Thermocouple data loggers can connect to various types of thermocouple sensors.

Range: -8mV to +73mV; Accuracy: ±0.1% (0.08 mV) @ 25°C + temperature compensation accuracy
Thermocouple typeTemperature range (°C)Resolution (°C)Accuracy (℃)
E type-171 to +9550.0181.326
J type-205 to +12000.0251.67
K type-270 to +13720.0352.37
N type-270 to +13000.042.66
T type-270 to +4000.0352.2
Range: -2mV to +18mV; Accuracy: ±0.15% (0.03 mV) @ 25°C + temperature compensation accuracy
Type B0-18200.052.84
E type-35 to 2600.0050.495
J type-40 to 3300.0080.57
K type-53 to 4370.010.69
N type-81 to 5320.010.813
Type R-50 to 15390.031.95
kinds-50 to 17040.031.95
T type-55 to 3530.0080.608

How does the TK-FS450 protect data?

  • The system is equipped with a highly durable NAS SSD, enabling long-term data backup.
  • The temperature data logger within the system is battery-powered (up to 10 years)   and can continue recording data even during power outages or blackouts.
  • The data logger’s memory can store up to two months’ worth of data (sampled every 10 seconds).
  • FTP Backup (Under Development, Coming Soon)
  • API (Under development, in preparation)
  • Communication with the OPC server (requires customization)



How can I trigger an alarm if the set range is exceeded?

  • Thermocouple data logger

Alarm
Channel AlarmEach channel has two editable alarm thresholds.

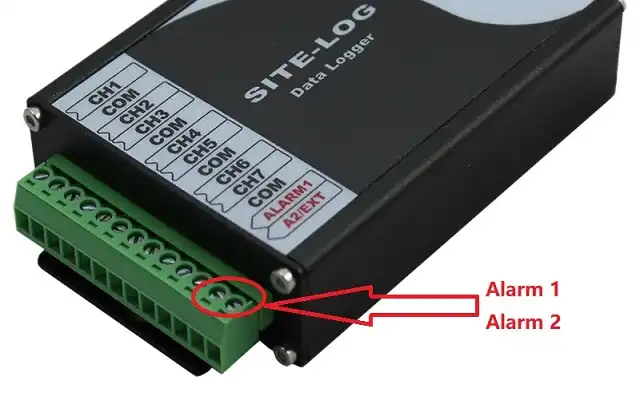

Alarm outputALARM1 & A2 / E terminal block can be configured as an alarm output. Alarm ON: MOSFET (N-channel) switch ON Alarm OFF: MOSFET (N-channel) switch OFF Maximum power: 200mA @ 24VDC
Alarm on delayDelays from 0 to 10 minutes, and increments of one minute, are programmable.
Alarm indicatorWhen an alarm is triggered, the onboard LED turns red.

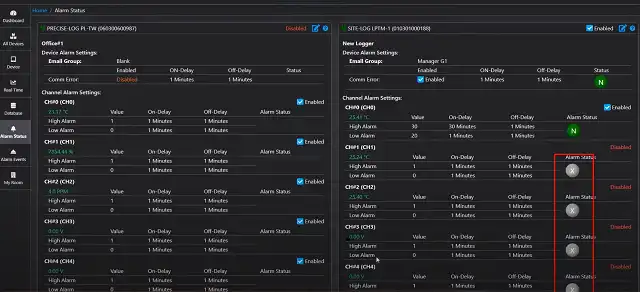

  • System alarm

You can set alarms in the system. When the sensor temperature exceeds the set value, the system will immediately display “ALARM” and can send an alarm notification to a configured email address.

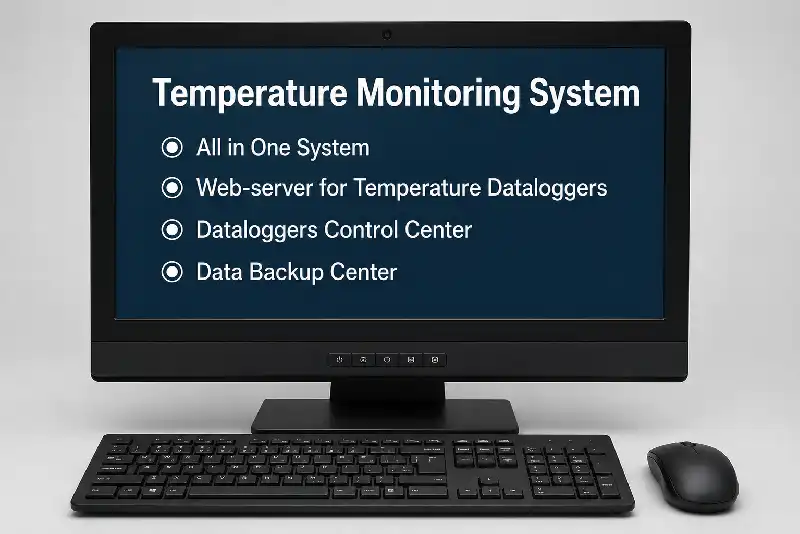

All-in-one temperature monitoring system TK-FS450





All-in-one temperature monitoring system TK-FS450



Customized system:

Our company provides reliable and cost-effective temperature monitoring systems for laboratories, research institutions, universities, and businesses of all sizes.





Next Steps…

Please contact us if you need more information/ details.  Email: [email protected]
